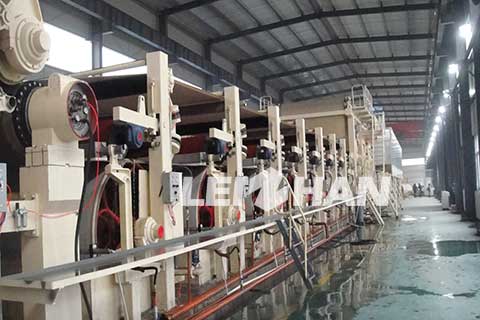

This cylinder mould type tube paper machine is used for making yarn tube cardboard. The cylinder mould type tube paper machine is mainly divided into the following parts: cylinder wire part, return pressing part, pressing part, drying part, and reeling part. Simple operation, convenient maintenance and long service life.

Main Parts about The Cylinder Mould Type Tube Paper Machine

1. Cylinder wire part: The cylinder wire part is equipped with seven cylinder wires. Main components: Each cylinder wire is equipped with a wire trough, a couch roll, a vacuum dewatering box, guide rolls, frames, etc., and a press Share one upper felt.
2. Return press part: At the return part of the wire part, a vacuum return press is set up. The upper press roller is a rubber-coated metal roller, and the lower press roller is a double vacuum chamber vacuum return roller, equipped with a return press upper felt. The back pressing is a double felt press.
3. Pressing part: divided into first pressing, second pressing and third pressing. The first pressing is vacuum pressing, the second and third presses are both large-diameter presses. The first-press, second-press, and third-press pressurization methods are all pressurized by ripple pneumatic tires.
4. Drying part: Φ1500/Φ1800 drying cylinder, group transmission, each group is equipped with dryer fabric and guide roller. Equipped with semi-enclosed air hood.
5. Reeling part: pneumatic horizontal paper reeling machine.
