This machine is a single fiber separator that causes radial stratification of heavy impurities, fibers and light impurities in the pulp due to different specific gravity under the action of centrifugal force. The single fiber separator is mainly used to separate light and heavy impurities in waste paper pulp and perform secondary pulping of the pulp from the hydraulic pulper.
This paper machine is driven by stepless speed-regulator, high quality copy paper making machine. The maximum production capacity of the copy paper making machine reaches 380t/d and its raw materials are virgin pulp, recycled paper, deinked pulp.

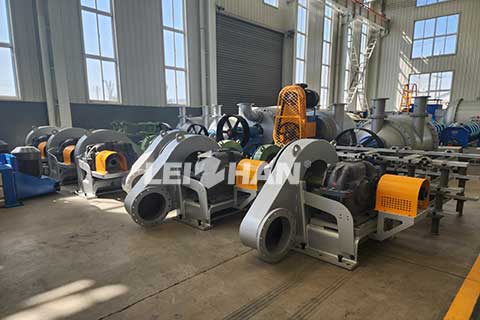

This Broken Pulper adopts double-acting rotor structure, split-structure designed screen plate, and transmission device designed with two sets of spherical roller bearings at the front and rear. The Broken Pulper is mainly used to deal with paper breakage generated in various paper machine pressing part, calendering part, reeling part and other positions.

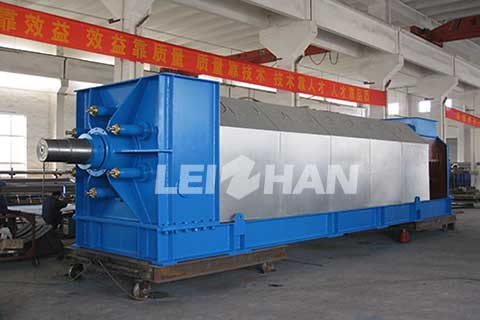

This Screw Press Washer is used for dewatering and concentration of waste paper pulp in pulp and paper industry. It is used in series with the inclined screw thickener to achieve the treatment concentration required by the thermal disperser. The Screw Press Washer is the key equipment in the thermal dispersing system.
This paper machine is a cultural paper making machine that adopts AC variable frequency step-by-step speed transmission forming. The maximum production capacity of the culture paper machine can reaches 10TPD and its trimmed width is 2880mm.
This bale breaker is used to bulk bale and screen waste paper. And the bale breaker disperses densely packed waste paper to facilitate the selection and classification of waste paper, while effectively removing light and heavy impurities.
This horizontal pneumatic reeling machine is mainly composed of reel paper roller, reel paper cylinder doctor blade, movable arc roller, main arm, web arm, paper rack, etc. The pressurization method of this horizontal pneumatic reeling machine adopts a pneumatic pressurization system.

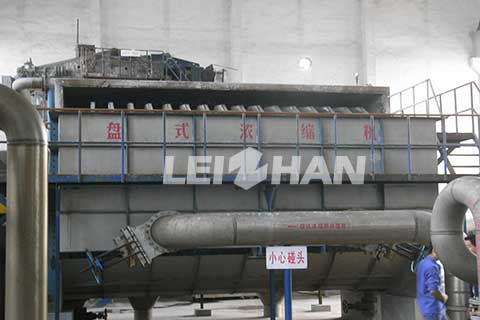

This machine is a gravity disc thickener, mainly used for thickening low concentration pulp. The gravity disc thickener is composed of a tank body, a machine cover, a large shaft, a sealing device, a wire washing and pulp stripping device and other parts.

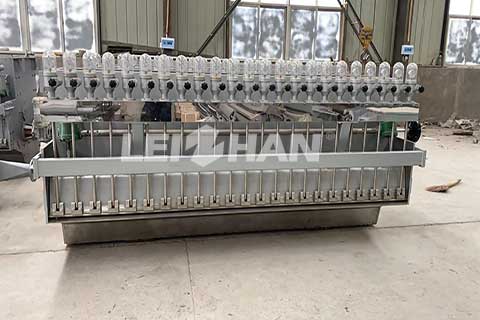

This headbox is an open air cushion type headbox. The lip width of the open headbox is 3950mm and the headbox is flat bottom, the surface of the pulp contact is fine polished stainless steel.
Hydrapurger is mainly used in D Type Hydrapulper continuous pulping system, it can equip with sediment well and drum screen. Using the Hydrapurger can remove plenty of light impurities in the waste paper pulp, avoid refining impurities in the pulping process.

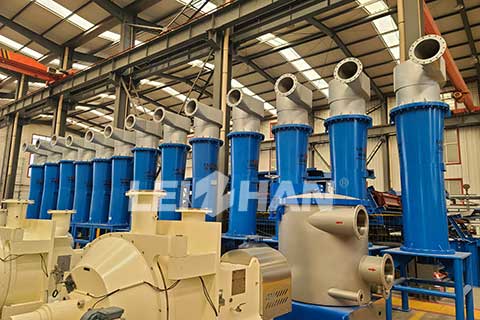

The high density cleaner is an ideal equipment for purifying the paper pulp and the paper manufacturers to improve paper quality and grade. The working principle of the high density cleaner is separates heavy impurities from pulp by utilizing the different specific gravity of fibers and impurities.
This paper Machine is a double-layer arrangement forming kraft paper making machine. The production types of the kraft paper making machine are kraft paper, T paper, corrugated base paper and its trimmed width reaches 4500mm.
